01↗

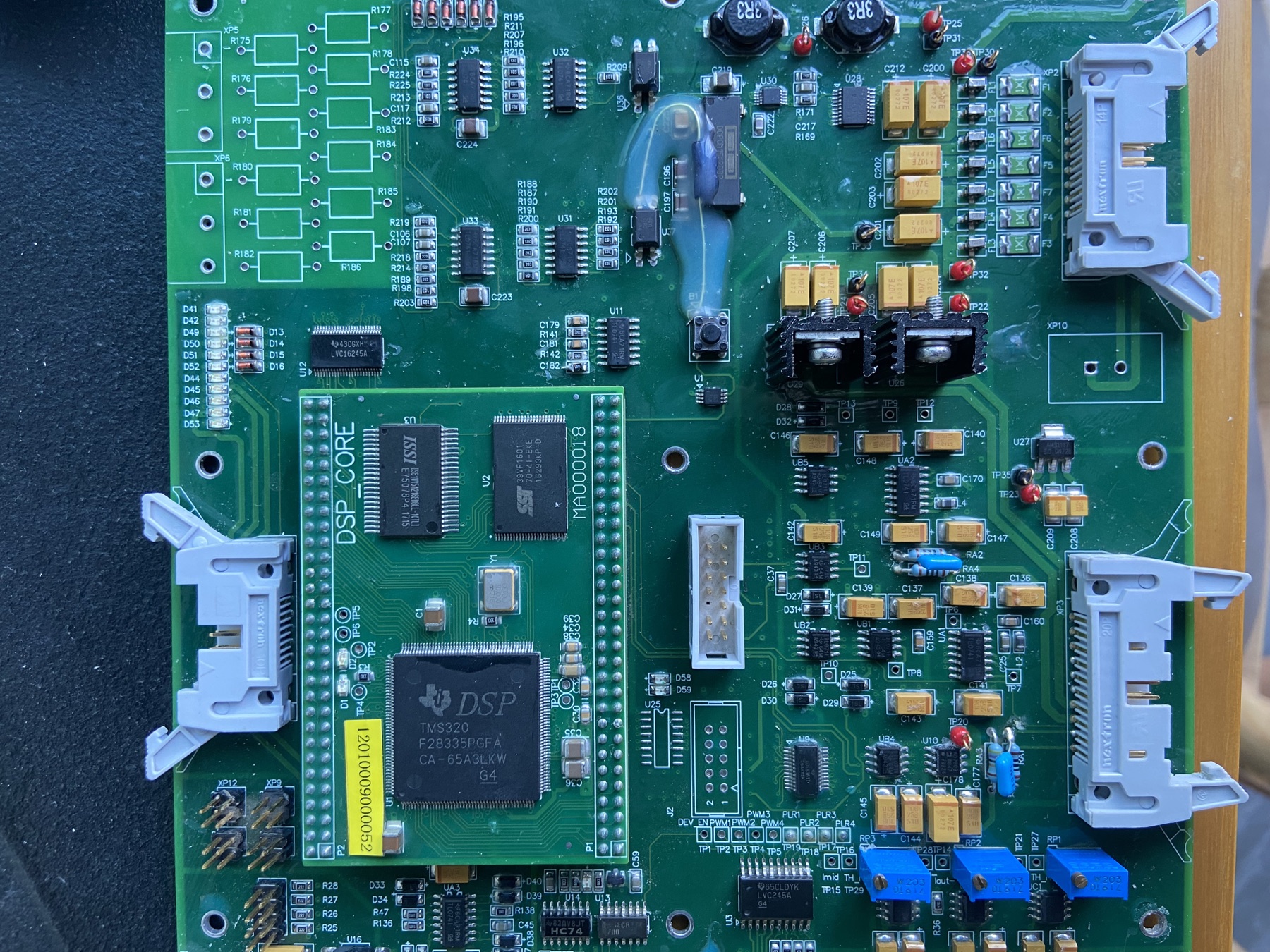

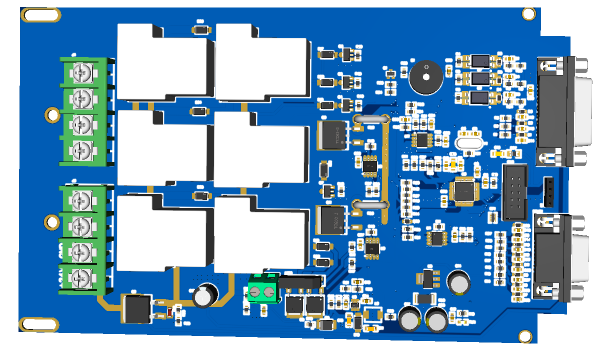

PCB design & assembly
Schematics, PCB layout, DFM, component sourcing and PCBA. A solid foundation for your product.
Build your hardware ↗ PCB + Embedded + App development
Your hardware.
Our full stack.
From the circuit board to the firmware to the app in your customer’s hand. One engineering partner to develop, connect and bring your hardware product to market.
PCB+EMBEDDED+APP
Hardware + firmwareBuilt to work together✓
Connected experienceDevice ↔ App→
ENGINEERED TO CONNECT
For product teams in
SingaporeMalaysiaVietnamThailandIndonesiaPhilippines
BUILT TO CONNECT
PCB / PCBA
MCU / RTOS
BLE / Wi-Fi
iOS / Android
API / MQTT
What we do
Three disciplines.
One product.
A complete development stack — or the specialist support you need. Start with a board, a firmware brief or an app concept.
02↗
Embedded development
MCU firmware, drivers, RTOS and device connectivity. Turn your circuit into a working product.
Develop your firmware ↗03↗
Mobile app development
iOS and Android apps for device onboarding, control and data. Bring your hardware into everyday use.
Connect your app ↗
APPPCB / CONNECTED PRODUCT ENGINEERING
About APPPCB
Built for the
whole product.
Your partner for hardware engineering, embedded software and connected app experiences.
We connect PCB design, embedded firmware and mobile app development in one coordinated workflow. From requirements and prototypes to system testing and production handover, we help international teams turn a hardware concept into a connected product.
PCBDesign, prototype
& assembly
& assembly
FWEmbedded logic
& connectivity
& connectivity
APPMobile experience
& device control
& device control
THE CONNECTED PRODUCT STACK ↗
01 / HARDWAREPCB + sensors + connectivitySchematic · Layout · PCBA
↑ ↓ Drivers / device interfaces
02 / EMBEDDEDFirmware + device intelligenceMCU · RTOS · OTA
↑ ↓ BLE / Wi-Fi / MQTT / API
03 / APPControl + data + experienceiOS · Android · Device onboarding
One system. Tested together.
Why APPPCB
Every layer.
Working together.
A connected product needs more than three separate deliverables. We align interfaces early and validate the complete journey, from a sensor reading on the board to the result in your app.
One coordinated engineering workflowHardware, firmware and app milestones aligned around your product requirements.
System-level validationDevice pairing, commands, data and update flows tested together.
Clear production & development handoverAgree source code, design files, BOM and test documentation in your project scope.
A clearer way forward
From concept to
connected product.
A clear development path, with scope, deliverables and review points agreed before the build.
01
Define the product
Share the use case, hardware needs, connectivity, app features and target market.
02
Design the full stack
Align schematics, firmware architecture, device protocols and app UX.
03
Prototype & integrate
Bring up the board, develop firmware and apps, then test the complete system.
04
Prepare for launch
Prepare production files, software handover and export delivery to your agreed scope.
Project scopePCB + FW + APPMilestones & timelineAgreed together
Where we plug in
Connected hardware.
Real-world value.
Build the board, the intelligence and the interface for the way your customers live and work.
Let's make it real
Let’s build your
next product.
Tell us which parts of the stack you need, your project stage and target market. Start a conversation by email or WhatsApp.
Talk to our engineering team.One conversation for your whole product.
Contact APPPCB
Ready when you are.
Share your PCB, embedded or app requirements. Existing files and early concepts are both welcome.
☎Phone+86-15919885167↗✉E-mailpeng@apppcb.com↗◔WhatsAppChat
with our team↗↗Project briefSend your requirements↗
Typical reply timeWithin 24 hoursEmail us ↗
What files do you need to get started?+
Start with a product brief. For PCB work, share schematics, Gerbers and a BOM if available. For embedded work, include the MCU and protocol requirements. For apps, describe the platforms, device connection and key user flows.
Can I start with just one service?+
Yes. We can support PCB work, embedded firmware or app development independently, or coordinate all three. We review your existing design, code and interfaces before agreeing the scope and timeline.
What will I receive at handover?+
Deliverables are agreed in the project scope. They can include PCB design and production files, BOM, firmware source, app source and builds, protocol documentation and test results. We also agree ownership and third-party licenses before development.
How do international projects work?+
We collaborate remotely with written requirements, milestone reviews and shared test results. For hardware shipments, destination, logistics, customs documents and applicable compliance requirements are confirmed in your quotation.
